Resolut D6-SQ

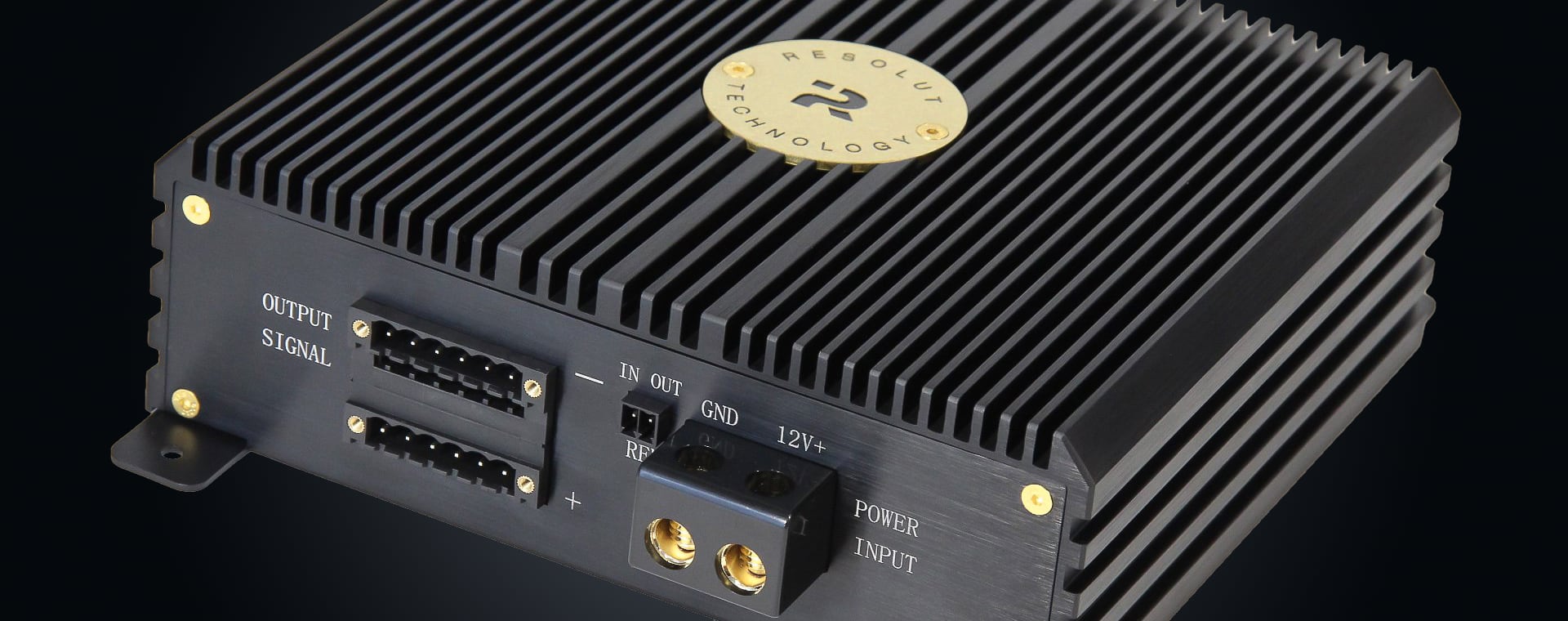

Resolut D6-SQ — the compact six-channel Class D automotive audio amplifier.
The D6 is a high-tech device designed to amplify the sound of an in-car audio system. Due to its performance characteristics and small size, this amplifier is an excellent choice for drivers seeking powerful, high-quality sound inside their vehicle.
Читать далее
- Device class: Class D provides high energy conversion efficiency and low heat generation, which significantly saves power and reduces the size of the device.
- Number of channels: Six channels allow you to connect multiple audio outputs at once — e.g. front speakers, subwoofers and rear speakers — providing multichannel surround sound.
- Compact size: The small dimensions make the amplifier convenient to install even in limited space inside the car, without taking up much room or disrupting the interior aesthetics.
- High power: Despite their small size, the amplifiers are capable of delivering significant output power, sufficient for effective music playback even at high volume levels.
- Efficient heat dissipation: A well-designed cooling system ensures stable operation of the device even under prolonged loads, preventing overheating and premature wear.
- Compatibility with various signal sources: The ability to connect to different multimedia devices makes the amplifier a versatile solution for a wide range of car audio systems.
- Adjustment options: The presence of built-in controls for crossover frequency and gain allows you to optimally adjust the sound characteristics to specific operating conditions and the driver's personal preferences.
Such an amplifier will become an indispensable addition to your audio system, providing high sound quality and comfortable listening to your favorite music while on the road.
СкрытьCharacteristics
Features and Functions:
- Amplifier class: D
- Rated power: 160W per channel at 4 Ohms
- Frequency response: 2Hz – 48kHz
- Signal-to-noise ratio (weighted): >111dB
- Noise level: 117dB
- Distortion (THD) at 4 Ohms: 0.005%
Technical specifications:
- Idle current: 890mA
- Operating voltage: 10.5V – 16V (voltage drop max. 3 sec. to 6V)

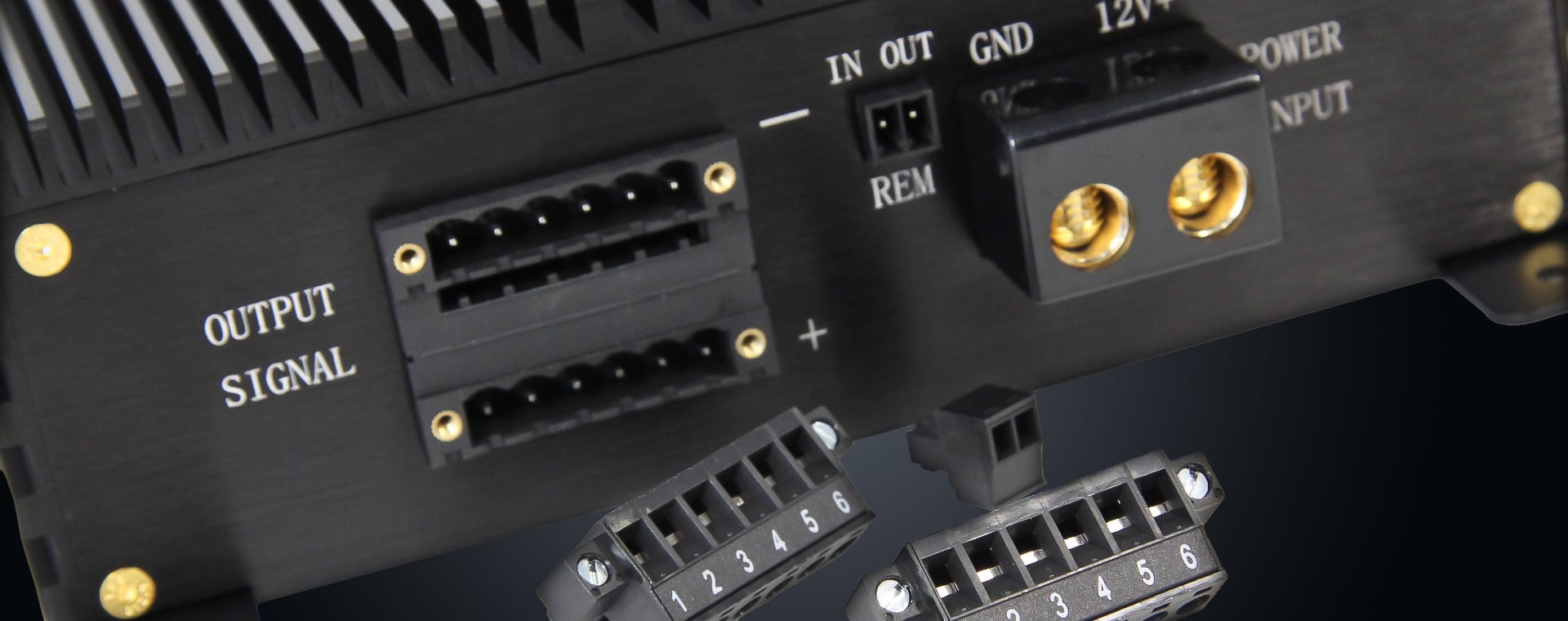

- Inputs: 6 x RCA
- Dimensions, mm (W x D x H): 173.3 x 190 x 60
- Width with mounting, mm: 207
- Weight, kg: 2.6
- Operating temperature range: -30°C to +50°C
